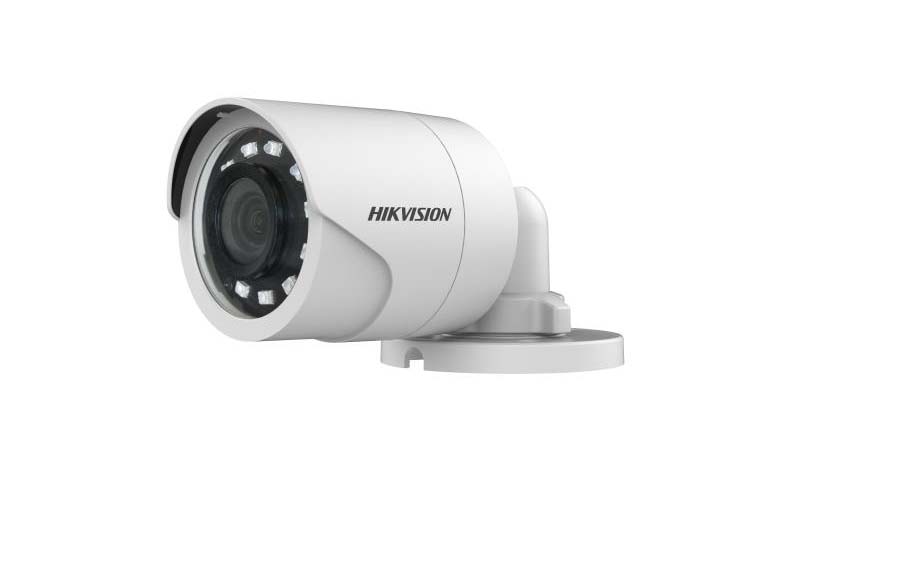

Hikvision 2 MP Fixed Mini Bullet Camera DS-2CE16D0T-IR(C)

Camera

• Image Sensor 2 MP CMOS
• Max Resolution 1920 (H) × 1080 (V)
• Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Day Night ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
• Signal System PAL/NTSC

Lens

• Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
  6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
• Lens Mount M12


• Image Parameters Switch STD/HIGH-SAT
• Image Setting Brightness, Sharpness, Smart IR
• Frame Rate TVI: 1080P@30fps, 1080P@25fps
• Day/Night Mode Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR) Digital WDR
• Image Enhancement BLC, HLC
• White Balance – Auto/Manual
• AHC Yes

Interface

• Video Output 1 HD analog output

General

• Material Metal
• Dimension Φ 70 mm × 137.8 mm (Φ 2.76″ × 5.43″)
• Weight Approx. 260 g (0.57 lb.)
• Operating Condition ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication HIKVISION-C
• Power Supply 12 VDC ± 25%
• Consumption Max. 3 W
• IP RangeUp to 25 m
