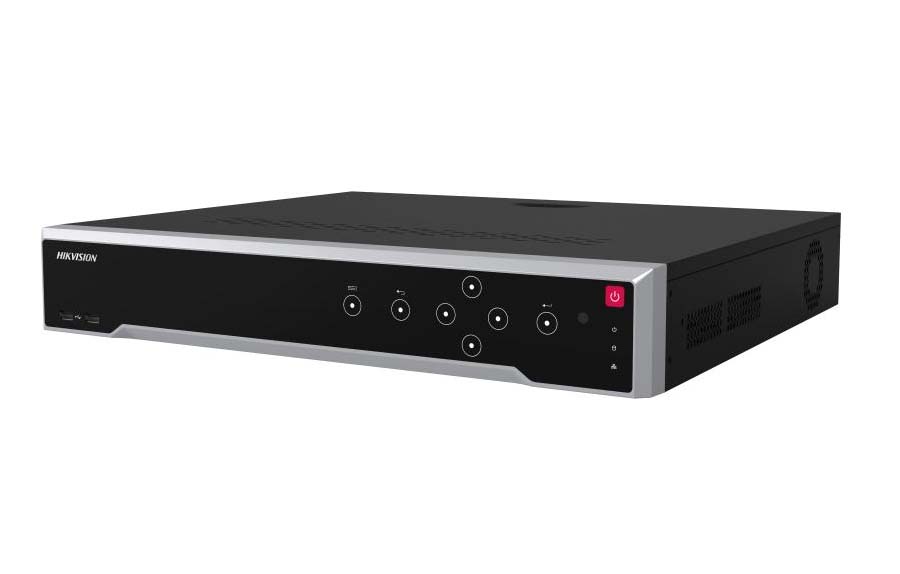

Hikvision 32 Channel 16 POE NVR DS-7732NI-K4/16P

Description

Hikvision 32 Channel NVR – DS-7732NI-K4/16P Specifications

Video and Audio

• IP Video Input – 32-ch
• Incoming Bandwidth – 256 Mbps
• Outgoing Bandwidth – 160 Mbps
• HDMI Output – 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output – 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output – 1-ch, RCA (Linear, 1 KΩ)
• Video Output Mode – HDMI/VGA independent output
• Two-Way Audio – 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format – H.265/ H.265+/H.264/H.264+
• Recording Resolution – 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback – 16-ch
• Decoding Capability – 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
• Stream Type – Video, Video & Audi
• Audio Compression – G.711ulaw/G.711alaw/G.722/G.726

Network

• Remote Connection – 128-ch
• Network Protocol – TCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface – 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

POE

• Interface – 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power – ≤ 200 W
• Standard – IEEE 802.3 af/at

Auxiliary Interlace

• Serial Interface – 2 RS-485 (half-duplex), 1 RS-232
• SATA – 4 SATA interfaces
• Capacity – Up to 10 TB capacity for each HDD
• Alarm In/Out – 16/ 4 (16/9 is optional)
• USB Interfaces – Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply – 100 to 240 VAC, 50 to 60Hz
• Consumption – ≤ 20 W (without HDD and PoE off)
• Working Temperature – -10 °C to 55 °C (14 °F to 131 °F
• Working Humidity – 10% to 90%
• Dimension (W × D × H) – 445 × 400 × 71 mm ( 17.5″× 15.7″ × 2.8″)
• Weight – ≤ 5 kg (without HDD, 11 lb.)

---
