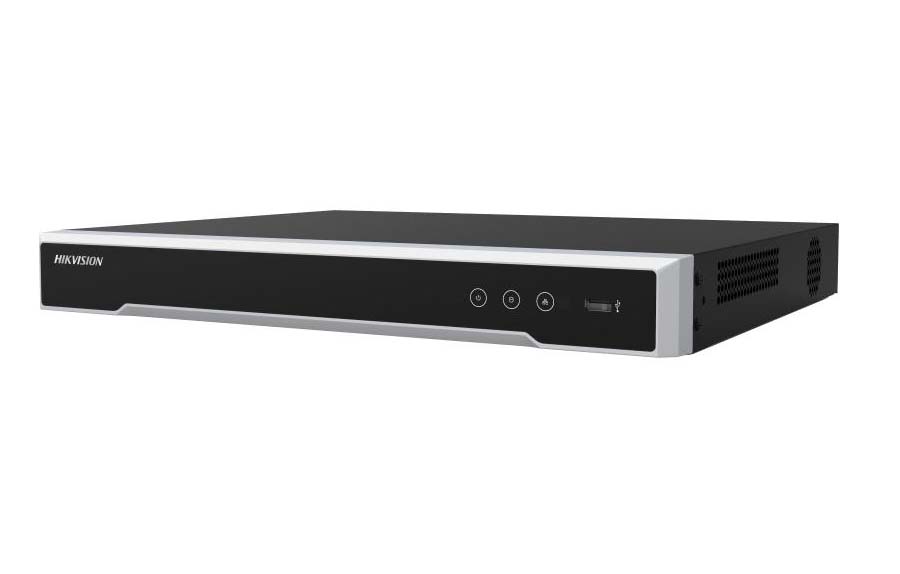

Hikvision 8 Channel 8MP POE NVR – DS-7608NIQ2/8P

Description

Hikvision 8 Channel NVR – DS-7608NI-Q2/8P Specifications

Motion Detection 2.0

• Human/Vehicle Analysis – 4

Video and Audio

• IP Video Input – 8-ch
• Incoming Bandwidth – 80 Mbps
• Outgoing Bandwidth – 80 Mbps
• HDMI Output – 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output – 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output – 1-ch, RCA (Linear, 1 KΩ)
• Video Output Mode – HDMI/VGA simultaneous output
• Two-Way Audio – 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format – H.265/ H.265+/H.264/H.264+
• Recording Resolution -8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback – 8-ch
• Decoding Capability – 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Network

• Network Protocol – TCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface – 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface – 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power – ≤ 80W
• Standard – IEEE 802.3 af/at

Auxiliary Interlace

• SATA – 2 SATA interfaces
• Capacity – Up to 8 TB capacity for each HDD
• USB Interfaces – 2 x USB 2.0

General

• Power Supply – 48V| ,2.5A MAX
• Consumption – ≤ 15 W
• Working Temperature – -10 °C to 55 °C (14 °F to 131 °F
• Working Humidity – 10% to 90%
• Chassis – 1U
• Dimension (W × D × H) – 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight – ≤ 2.6 kg (5.7 lb)

---
